Description
The LUMIX BS1His a versatile box-style camera that features the cinema-quality video performance of the LUMIX S1H in an easy-to-deploy profile. The BS1H contains a 24.2MP 35mm full-frame CMOS sensor with Dual Native ISO technology that captures 6K resolution at maximum ISO 51200. Maximizing the use of the pixels in the full-frame image sensor, the LUMIX BS1H is capable of 6K/24p, 5.4K/30p (3:2) or 5.9K/30p (16:9) high-resolution, smooth video recording. It also provides 10-bit 60p 4K/C4K* HEVC video and 4:2:2 10-bit 4K30p in H.264 recording modes. The BS1H provides 14+ stops of dynamic range in V-Log which is as wide as those of cinema cameras and V-Log / V-Gamut compatible with popular calorimetry called “VariCam Look.” The BS1H is capable of 4:2:2 10-bit 4K 60p/50p HDMI output. Adopting a new heat dispersion structure, it achieves unlimited video recording in a variety of recording formats, including 4:3 Anamorphic mode. Moreover, [5.9K] / [4K] / [Anamorphic (4:3) 3.5K] 12-bit RAW video data can be output over HDMI to save Apple ProRes RAW in Atomos Ninja V or save Blackmagic RAW in Blackmagic Video Assist 12G HDR**. The BS1H offers an IP streaming function over Ethernet, even allowing 4K 60p (50p) video streaming in H.265. The BS1H provides a variety of practical ports such as a USB 3.1 Type-C, a 3G-SDI (BNC) and an HDMI Type-A terminal which can be used for simultaneous output. Genlock IN and Timecode functions are also available. Power over Ethernet+ (PoE+) makes it is easy to install both physically and electrically. Control over maximum 12 sets of LUMIX BS1H cameras*** is available using LUMIX Tether for Multicam. Last but not least, Φ3.5 audio jack, Wi-Fi, Bluetooth and tethered photo shooting with LUMIX Tether for Multicam software are also available. For even higher quality sound recording, XLR microphone DMW-XLR1 (sold separately) can be used. An SDK**** for camera control via USB/LAN will be provided for free. *Corresponding to 4K (4096×2160) as defined by Digital Cinema Initiatives (DCI). **For the RAW output function, please refer to each company website for the information on the corresponding firmware version of each external monitor/recorder. All functions may not be available depending on the situation. Apple and ProRes are trademarks or registered trademarks of Apple Inc. in the United States and/or other countries. ATOMOS / Ninja V are registered trademarks of ATOMOS Limited. ‘Blackmagic Design’ and ‘Blackmagic RAW’ are registered trademarks of Blackmagic Design Pty. Ltd. ***Operation may be unstable depending on the connection environment and performance of the connected PC. **** The SDK for BS1H will be available at following site. https://panasonic.jp/support/global/cs/soft/tool/sdk.html
Box-Style Live & Cinema Full-Frame Camera
For large format 4K cinema, broadcasting, or live streaming, LUMIX BS1H offers the exceptional performance you need in a box camera body with 6K 24p / 5.9K 30p 10-bit unlimited video recording capability.
Add XLR Microphone (sold separately)
Connect an XLR microphone and achieve high-quality stereo sound. High-res sound recording at 96 kHz/24-bit is also selectable in MOV recording. This accessory also supports the use of plug-in power.
Ethernet and PoE+ Compatible
Simply by connecting the BS1H via Ethernet cable, your camera will be powered over Ethernet and allow multiple-camera remote control through the LUMIX Tether for Multicam software.
Stable Connectivity with Simultaneous SDI/HDMI Output
Simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering.
Genlock IN and Timecode IN/OUT
Supporting GenLock IN enables multiple-camera control and streaming. Used in combination with the time code feature, it satisfies high-precision live video production.
3 Power Source Options
Three power source options are offered. 1. AC Adaptor (12V, 3A) (bundled) / 2. Li-ion Battery Pack (7.28V) (sold separately) / 3. PoE+ (IEEE802.3at compliant) (sold separately).
Higher Functionality Remote Control Compatibility

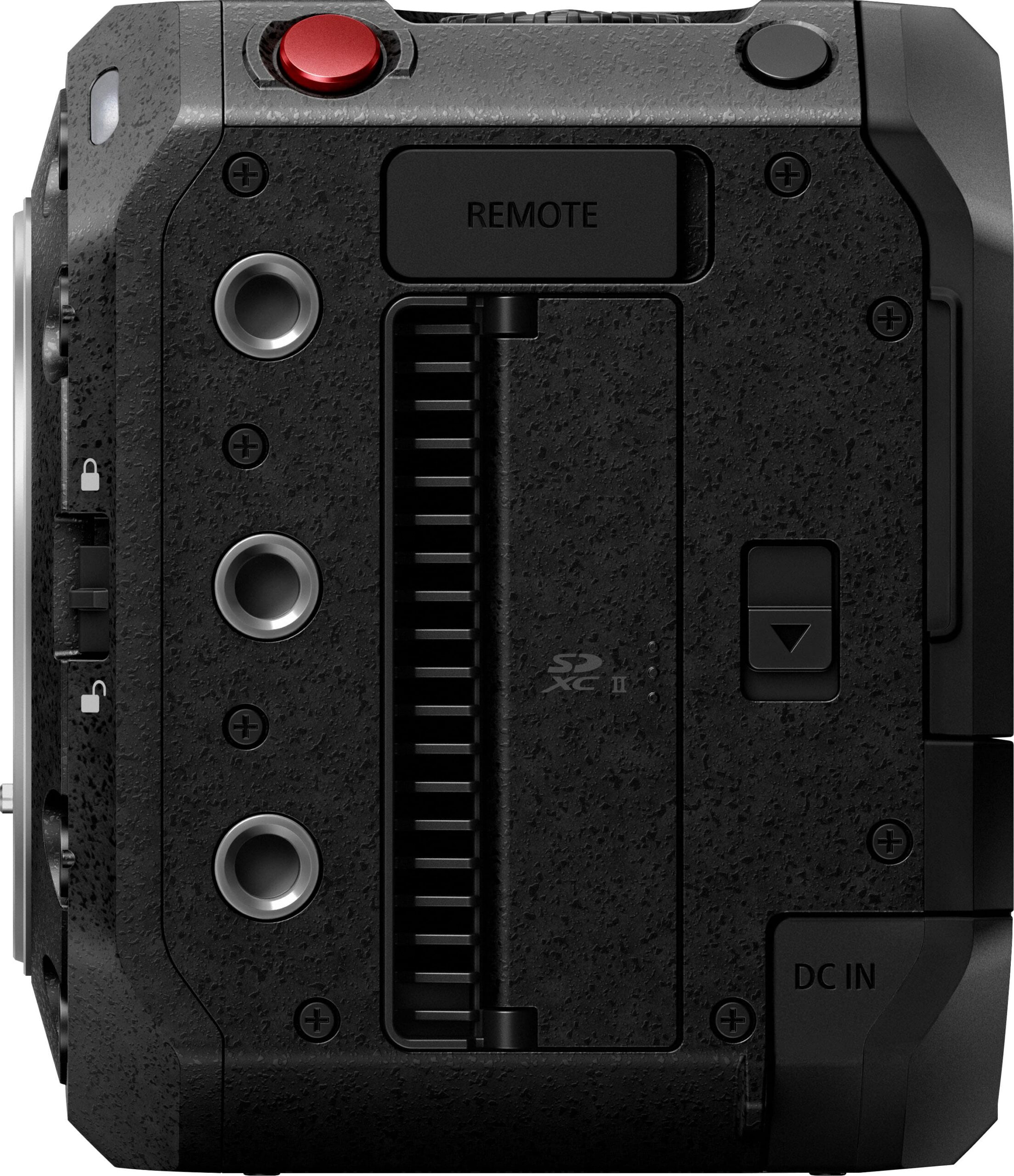

The remote terminal (2.5mm super mini jack) of the BS1H offers compatibility with widely used high-functionality remote controls, a LUMIX first, which enables precise remote operation
Internal/External Recording
The BS1H supports simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording.
14+ stops of V-Log and V-Gamut for a “VariCam Look”
V-Log and V-Gamut come preinstalled. With 14+ stops of dynamic range and a wide color spectrum, BGH1 performance rivals that of a VariCam professional cinema camera.
Enhanced Remote Control Compatibility
Compatibie with widely-used high-functionality remote controls, the remote terminal (2.5mm super mini jack) of the LUMIX BS1H offers versatile and precise remote operation.
RAW Video Data Output
Output RAW video data over HDMI to save as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder, or Blackmagic RAW on Video Assist 12G HDR. *29.97p 5.9K (5888×3312, 16:9) / 59.94p 4K (4128×2176, 17:9) and Anamorphic 3.5K (3536×2656, 4:3) 12-bit RAW video data
24.2 Full-Frame Sensor
The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.
6k Video Performance
BS1H meets diverse professional video production needs with a wide array of recording modes. *6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p** 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording
Unlimited Video Recording
Enjoy unlimited recording, thanks to a cooling fan that keeps the BS1H within the guaranteed operating temperature range.
