CUB CADET ULTIMA Z3 60 17AIECE5A10

Be the first to review|Item # 17AIECE5A10

Stocked & Ready

Sale!

CUB CADET ULTIMA Z3 60 17AIECE5A10 - Image 2

CUB CADET ULTIMA Z3 60 17AIECE5A10 - Image 3

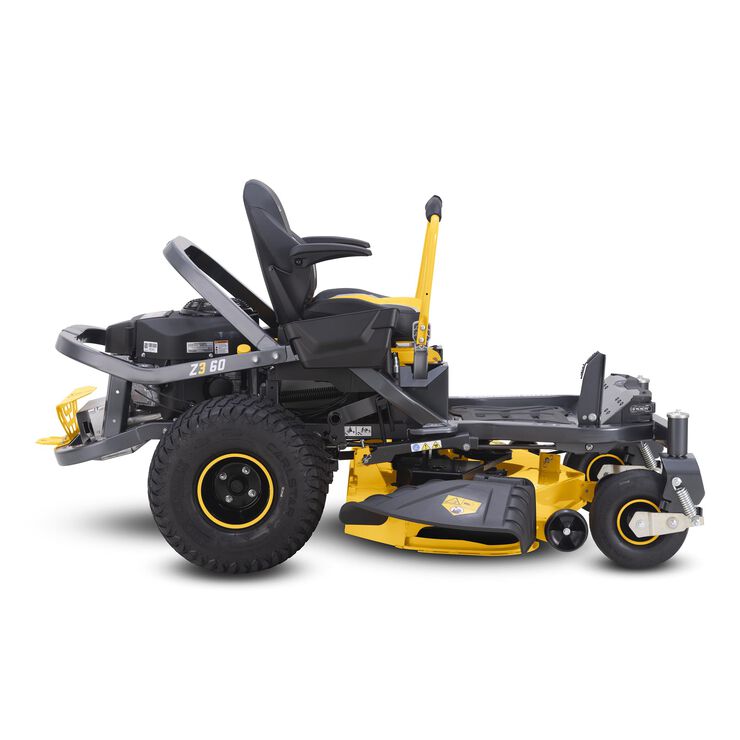

CUB CADET ULTIMA Z3 60 17AIECE5A10 - Image 4

CUB CADET ULTIMA Z3 60 17AIECE5A10 - Image 5

$4454¹⁹~~$4,949.10~~You save $494.91

Shopping at

Delivery to

PickupPick up at the counterIn stockFree

DeliveryOptions & costs at checkout

Get everything you need

CUB CADET ULTIMA Z3 60 17AIECE5A10$4454¹⁹

Toro 77301 34" TimeCutter® Zero Turn Mower$2988¹⁷

Hustler Raptor XD 60" W/ FlexForks 944553$4628⁴²

CUB CADET ULTIMA ZTS2 54 17ASGGY3A10$4468⁰⁴

Rewards Club members earn points with purchases.
Sign in or Join Now

STORE PICKUP OR LOCAL DELIVERY ONLY

SET UP AND PREP FEES MAY APPLY

Z3 60

The Ultimate Mowing Experience is about to step up with enhanced comfort and performance designed to deliver the proven results you expect from the Ultima Series™. The Cub Cadet® Ultima Series Z3 60 60-in. 24 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck delivers uncompromised performance, durable strength, and proven results needed to tackle hills and slopes up to 15-degrees. Work in comfort with a high back seat and save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**.

Engine

Engine Brand: Kawasaki®
Engine Model: FR Series
Engine Model Number: 730V
Engine Displacement: 726cc
Engine Output: 24HP
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1qt. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Separate Choke
Air Filter: Dual element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 230 CCA
Battery Type: Lead Acid
Battery Voltage: 12V

Drive System

Transmission: Tuff Torq TZ 350
Forward Speed: 7 MPH / 11.3 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic

Cutting Deck

Deck Cutting: Width 60 in
Deck Wash: No
Deck Material: 11-gauge steel
Deck Engagement: (PTO) Electric
Deck Construction: Fabricated
Blade(s): 3
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1” – 4.5”
Anti-Scalping: 2 gauge wheels
Deck Positions: 15

Warranty

Residential Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: No

Chassis

Frame: 2” x 2” tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Cruise Control: No
Brakes: Disc
Steering Control: Lap Bars

Comfort

Seat Type: 20″ Cut-and-Sew with Head Bolster
Armrests: No
Seat Adjustment: Knob
Front Caster Suspension: No

Wheels

Rear Tires: 20”x 12”-8″
Front Tires: 11″x 6.0″-6″
Tire Tread: Turf Armor

Additional Specifications

Hour Meter: Yes
Mulch Kit: Available separately
Headlight(s): LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Hand lever
Model Number: 17AIECE5A10

AIR FILTER: KM-11013-0752 OR 490-200-F022
OIL FILTER: KM-49065-0736
ENGINE OIL:
FUEL FILTER: KM-49019-0031
SPARK PLUG: KM-BPR4ES
DECK BELT: 754P06094
DRIVE BELT: 954-04317A OR 490-501-C069
BLADES : 742P05620
XTREME BLADES: 742P05620-X
IGNITION KEY: 925-1745A
HOUR METER KIT:

The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 24 HP*/726cc Kawasaki® Engine built to meet fierce demands.
A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Protect against wear and tear while being the envy of your neighborhood with a continuous, 2×2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
