Z3 60S

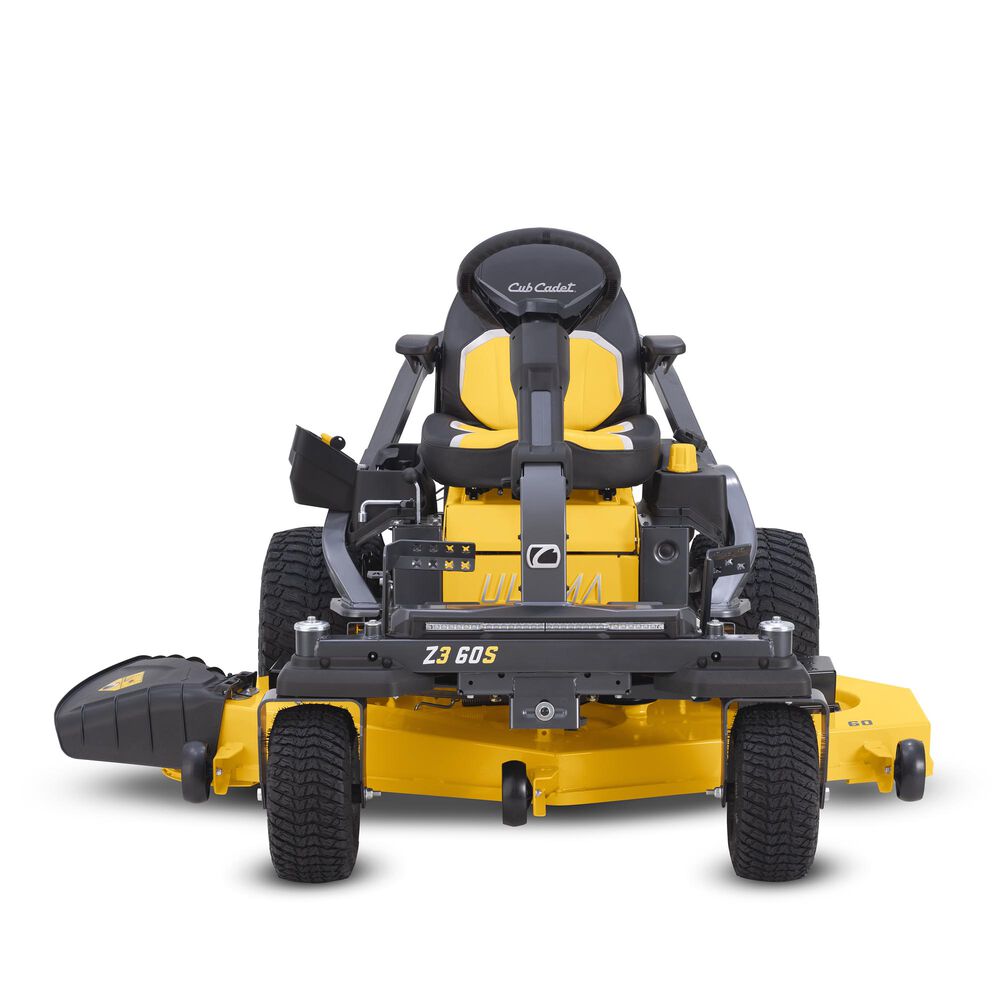

Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 60S 23 HP Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides and slopes up to 20-degrees**. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.

Engine

Engine Brand: Kawasaki®
Engine Model: FR Series
Engine Model Number: 730V
Engine Displacement: 726cc
Engine Output: 24HP
Starter Type: Electric
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.1qt. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Separate Choke
Air Filter: Dual element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 230 CCA
Battery Type: Lead Acid
Battery Voltage: 12V

Drive System

Transmission: Hydro-Gear ZT 2800
Forward Speed: 7 MPH / 11.3 km/h
Reverse Speed: 3.5 MPH / 5.6 km/h
Drive System: Hydrostatic

Cutting Deck

Deck Cutting: Width 60 in
Deck Wash: No
Deck Material: 11-gauge steel
Deck Engagement: (PTO) Electric
Deck Construction: Fabricated
Blade(s): 3
Deck Lift: Foot pedal with Dial Adjust
Cutting Height Range: 1” – 4.5”
Anti-Scalping: 2 gauge wheels
Deck Positions: 15

Warranty

Residential Warranty: 3-year unlimited hours
Frame Warranty: Lifetime Limited
Deck Shell Warranty: Lifetime limited
Commercial Warranty: No

Chassis

Frame: 2” x 2” tubular steel
Turning Radius: 0°
ROPS: No
Rear Tow Hitch: Yes
Corrosion Protection: Yes

Controls

Cruise Control: No
Brakes: Disc
Steering Control: Steering Wheel

Comfort

Seat Type: 20″ Cut-and-Sew with Head Bolster
Armrests: No
Seat Adjustment: Knob
Front Caster Suspension: No

Wheels

Rear Tires: 20”x 12”-8″
Front Tires: 13″x 6.5″-6″
Tire Tread: Turf Armor

Additional Specifications

Hour Meter: Yes
Mulch Kit: Available separately
Headlight(s): LED
Cup Holder: Yes
Operator Presence System: Yes
Parking Brake: Hand lever
Model Number: 17CIGGY5A10

AIR FILTER: KM-11013-0752 OR 490-200-F022
OIL FILTER: KM-49065-0736
ENGINE OIL:
FUEL FILTER: KM-49019-0031
SPARK PLUG: KM-BPR4ES
DECK BELT: 754P06094
DRIVE BELT: 954-04317A OR 490-501-C069
BLADES : 742P05620
XTREME BLADES: 742P05620-X
IGNITION KEY: 925-1745A
HOUR METER KIT:

Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.
The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 23HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.
An AeroForce™ welded, heavy-duty fabricated deck delivers a signature cut with few clumps and stragglers, fine clippings and evenness.
